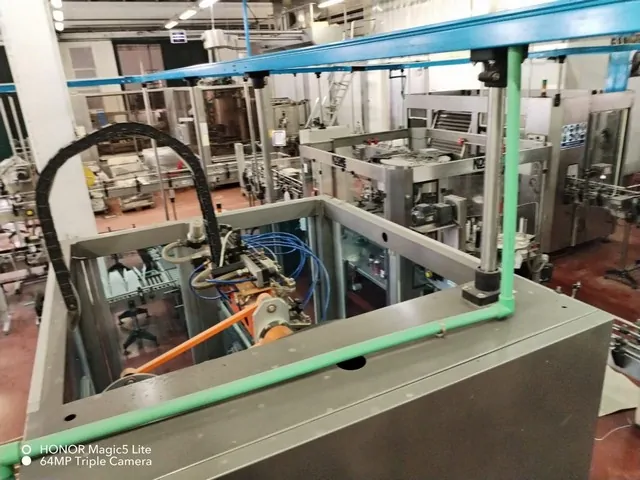

Used Complete Bottling Line for Wine 12.000 bph:
Speed: 12.000 BPH with bottles of 0.75 L
Depalletizer Keber:
Model: Depack 92
Year: 2001
Speed: 65 layers/hour
Pallet Storage
Inter-layer system
Dimension pallet 1000 mm x 1200 mm x 1400 mm
Maximum height for pallet 2300 mm
Microfiltration Pall:
Model: Saso64gnw80j-it
Year: 1998

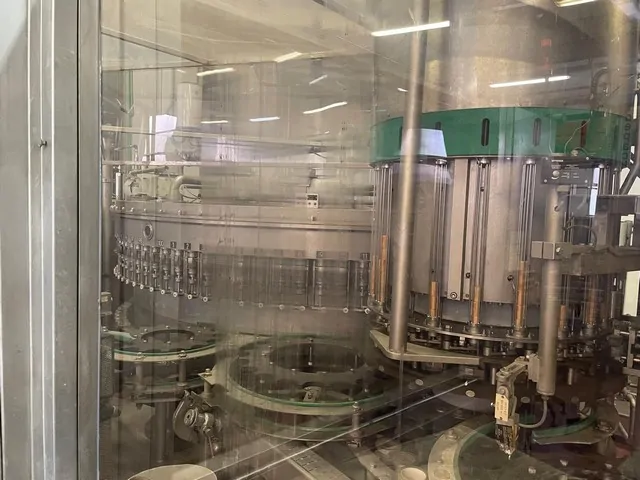

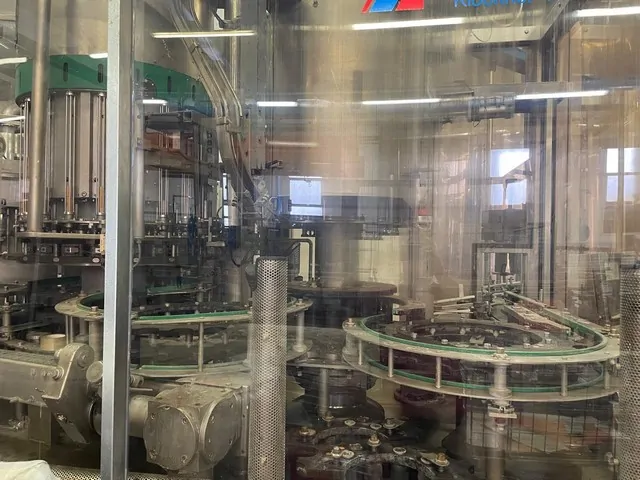

Triblock KHS
Model: Innofill um
Clockwise directions
Speed: up to 33.000 BPH
Triblock composed of
Rinser
100 clamps
Automatic adjustment height
Fix nozzles
Double treatment
Water and Nitrogen
Filler
100 valves by gravity
Automatic adjustment height tank
Mechanicals valves
Pre-evacuation
Capper
20 heads for natural straight corks
Dimension of corks: 25 mm Ø x 48 mm H
Vacuum before capping
Inert gas injection system before capping
Stelvin capper
15 heads
Nr. 2 pneumatic cap elevators
3 Inspecrtor FT System:
Model: clx-300/ce333
Control presence
nr. 3 ejectors on conveyor
1 after Triblock for levels and cap/cork
1 after capsuling for capsules
1 after labeller for lables
Capsules distributor WBeer:
Long range storage
Suitable for PVC capsules
Nortan Capsuling machine for PVC
Model: Termocap 12
Year: 2002
12 heads
Manual adjustment height
Labeller Kosme:
Modello: Top.Star
Counterclockwise directions
16 Heads
Mechanical movement plates
4 station (2 cold glue; 2 adhesive)
Suitable to apply
Front and back (adhesive)
Front and back (glue)
Optical centering by photocells
Additional ironing on exit

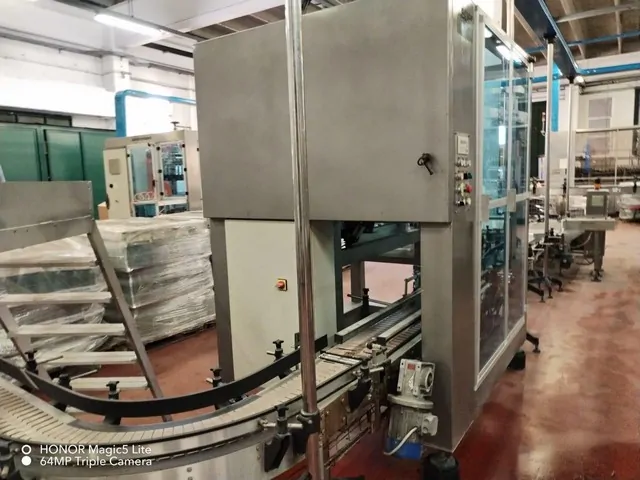

Conveyors bottles and cartons Keber:

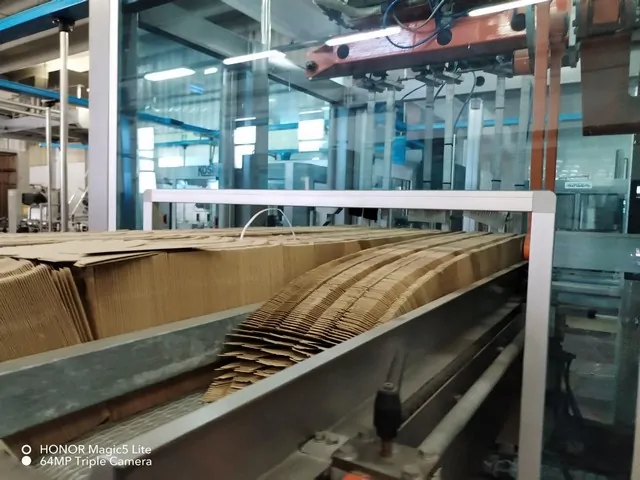

Case Erector Keber:
model: Formapack 3 s
Year: 1997
Cold glue
Gluer Nordson serie 3400v

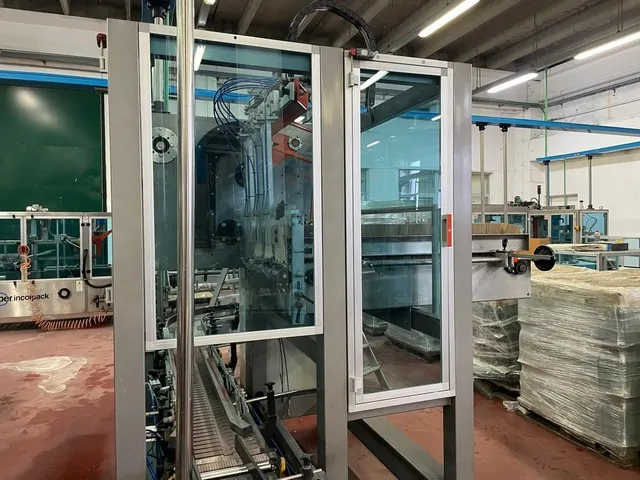

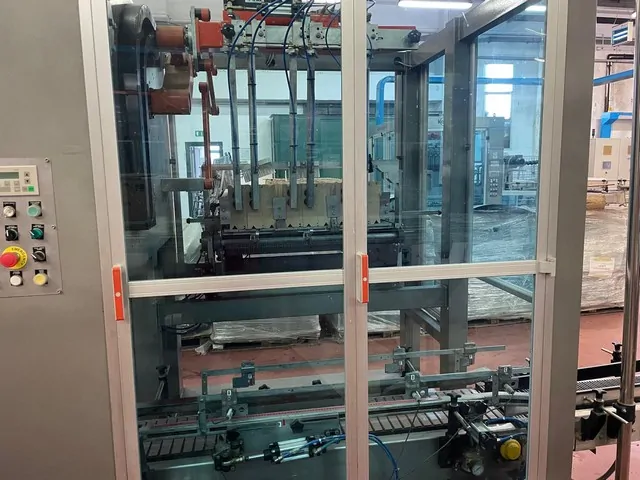

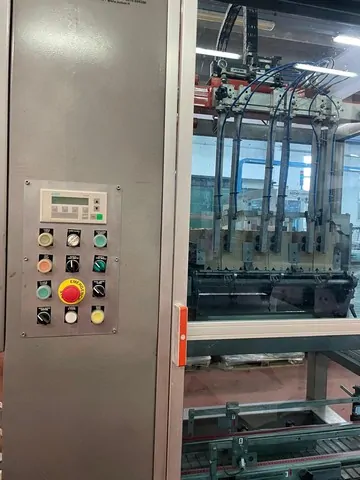

Case Packer Keber:
Model: Incapack
Speed: 400 CPH
Single registrable head
Sockets: 30
Suitable for
4 or 5 cartons 3X2 or
2 cartons 4X3

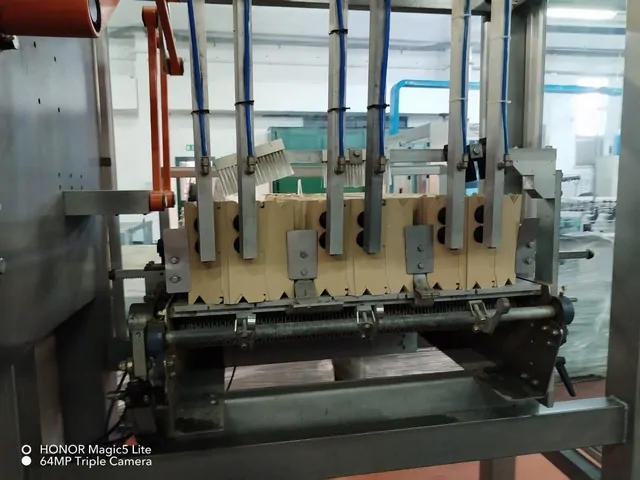

Put hive Keber:
Model: Insertpack
Heads: 3
Suitable for 3 cartons 3X2 or 2 cartons 4X3
Carton closing Keber:
Model: Incolpack
Box weigher Ft System:
Model: pco 150 nx
Eject system on conveyor
Palletizer Keber:
Model: pal mec arm 98
Speed: 1.5 Layer/minute
Interlayer system
Maximum height pallet 2300 mm
Shrink pallet Keber:
Model: Volpack 095
Speed: 19 Pallet/hour
Maximum workable pallet 2200 mm
Rotating table
