Used Complete PET Krones line 30.000 bph:
Product: Still water (with neck modification can also make sparkling)
Speed:
30.000 BPH with bottles of 0.5 lt
30.000 BPH with bottles of 1.5 lt
22.000 BPH with bottles of 2 lt
Working hours: 56.000
Preform tipper M. Tanner AG:
Model: VZT -4010
Year: 2004
Preform Washing System Krones:
High pressure compressor Ateliers Francois:
Model: 20G282
Pressure: 40 BAR
Blower PET Krones:
Model: Contiform 20
Number of cavities: 20
Molds not included
Complete with feeder and preform orientator
Cap Elevator and Orientator Gassner:
Type of caps supported: Plastic pre-threaded cap
type: mechanical
Type of caps supported: cap sport
Cip Steinecker:
Model: Media
Station UV WEDEDCO:
Water treatment using UV rays
Monoblock KRONES (composed of filler and capper):
Model: Isofill
Direction: Counterclockwise
Height adjustment : electric
Filler:
88 valves
Type of filling: isobaric filling
Valve type: mechanical
Degassing
Capper:
22 heads
Type of workable cap: pre-threaded plastic; Sport Cap
Distribution system pick & place
Bottle inspector Heuft:
Model: HBBVXTXXX
Year: 2015
Bottle direction: from right to left
Type of control: overfilling, underfilling, presence of cap, cap not aligned correctly
Bottle conveyor belts Krones:
Labeller Krones:
Model: Contiroll
Year: 2019
Direction: Clockwise
Electric head adjustment
18 heads with mechanical cam
1 roll fed station – wrap-around label
Label presence check

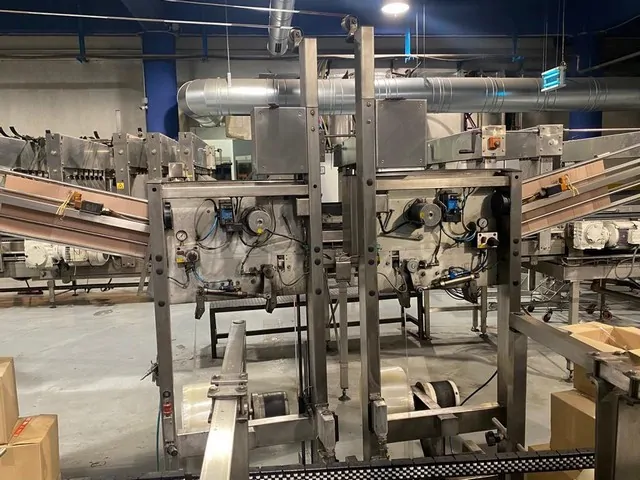

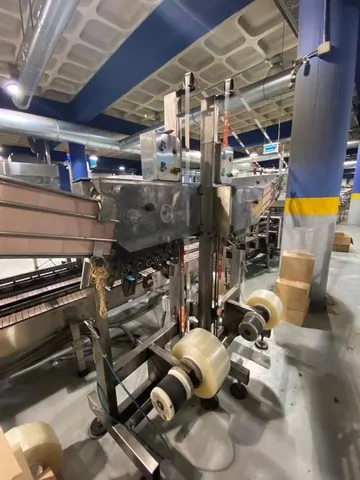

Shrink Wrapper Variopac:
Version: Film Launch
Type: only film
Wrap Around Krones:
Model: Wrapapac
Hot glue system: Nordson
Number of bottles per boxes: 12×1.5L & 24 x 0.5L
Hours of use: 1000
Conveyor bundles/boxes Krones:

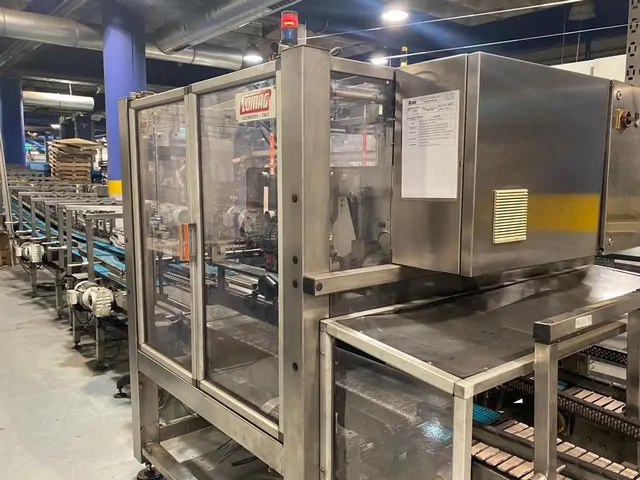

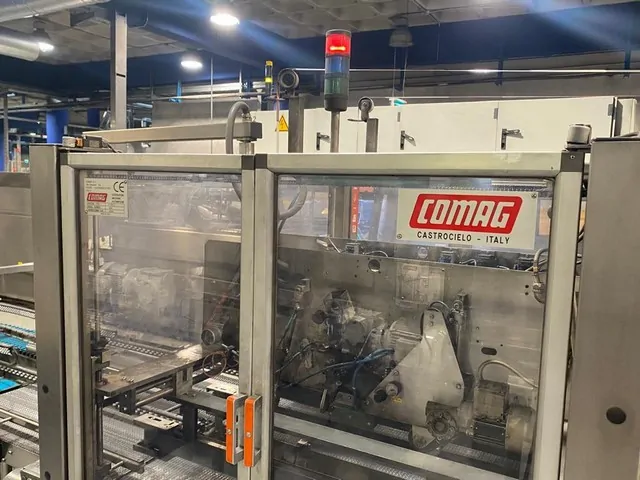

Handler Comag:
Model: H 55/2
Double lane

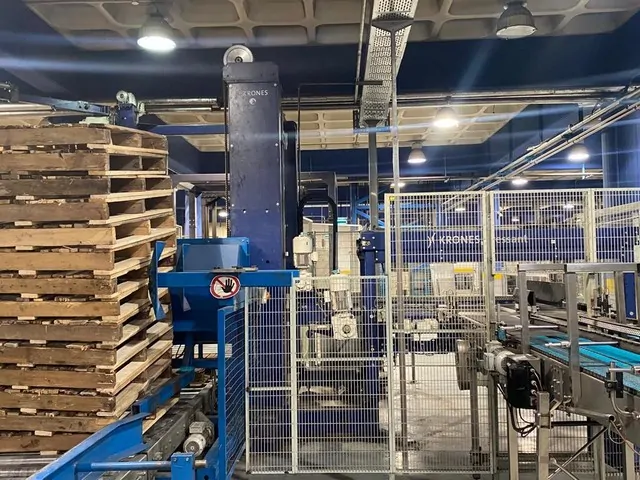

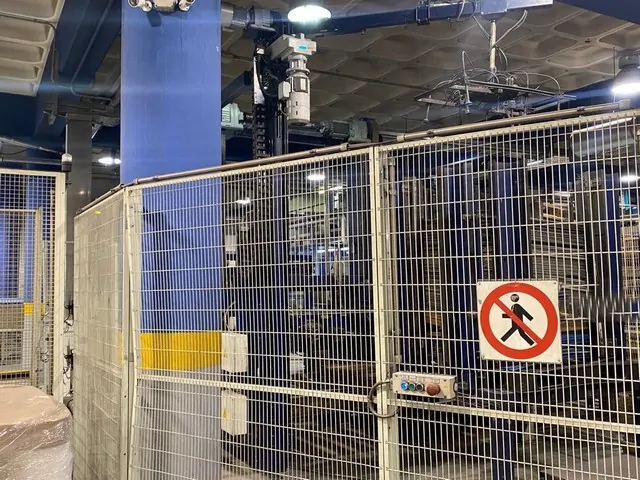

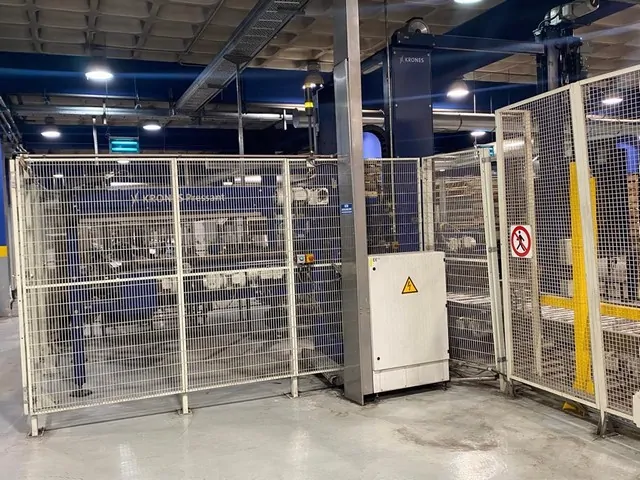

Palletizer Krones:
Model: Pressant
Type of product to be palletized: bundles, boxes
Type: Push
pallet warehouse
Interlayer system
Dual Input
Pallet Wrapper Robopac:
Model: HELIX HS 30
Type of Wrap: Rotating arm
Pre-stretch
