Description and technical details
Used 5l pet water bottling line
Speed: 6,000 BPH max

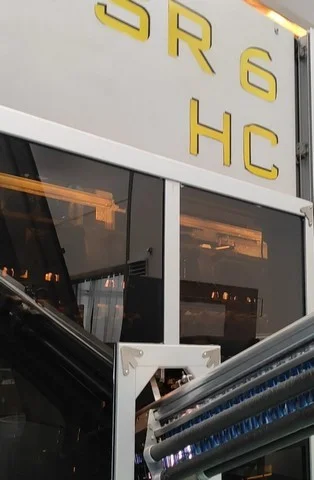

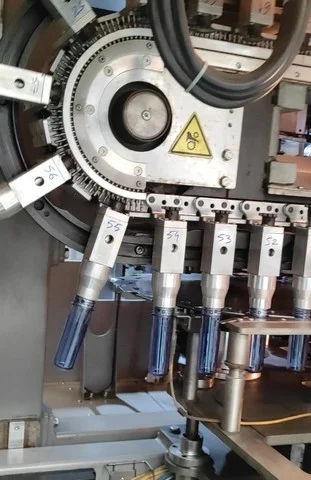

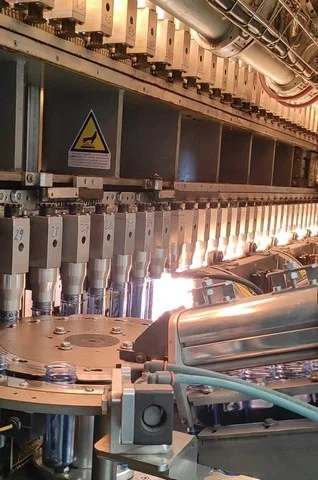

SMIFORM Blow Molder
Year: 2008
Model: SR6HC
Type: Rotary
Number of cavities: 6
Moulds priced separately

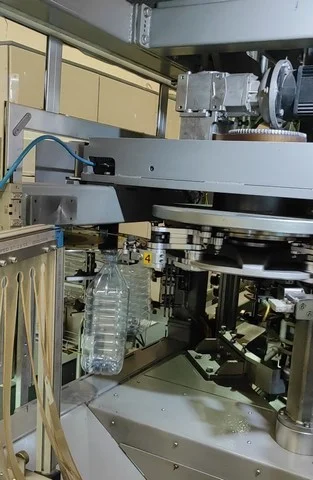

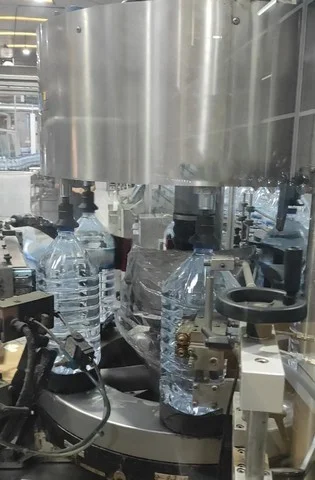

GALLARDO Monoblock
Year: 2009
Model: 16/20
Rinser
Number of clamps: 16
Gravity Filler
Number of valves: 20
AROL Capper
Number of heads: 4
Cap type: Plastic screw cap
Cap feeding system: Pick and Place
Cap size handled: 38/31 mm
PENTALINE Bottle Dryer
Year: 2023
AUXIEMBA Labeler
Year: 2010
Type: Hot melt
Number of heads: 6
PENTALINE Divider

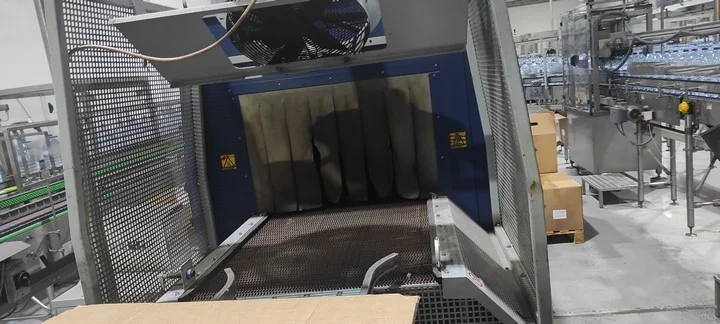

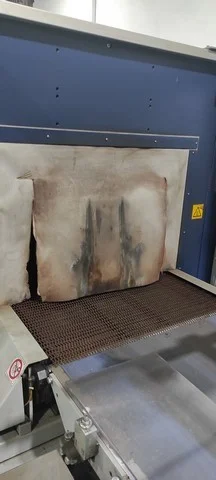

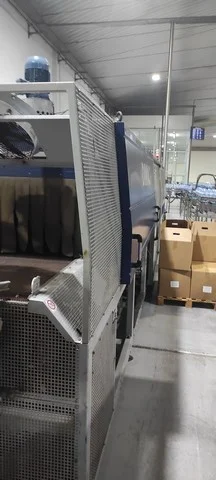

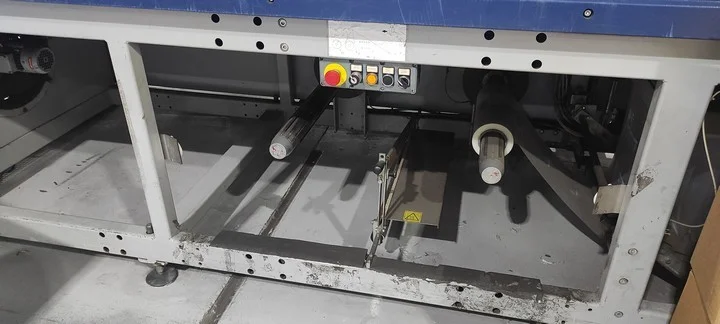

DIMAC Shrink Wrapper
Model: GREEN STAR F
Year: 2009
Packaging function: Packs 2 bottles
PENTALINE Picking Table

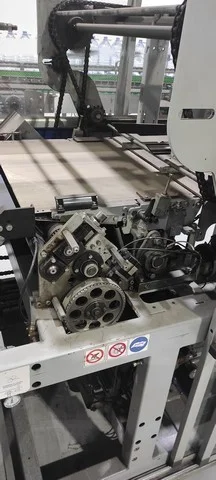

MAS PACK Tray Former
Year: 2016
Type: Glue type
Nordson gluing unit
Forms trays for sizes: 800 × 1200 and 800 × 600 mm

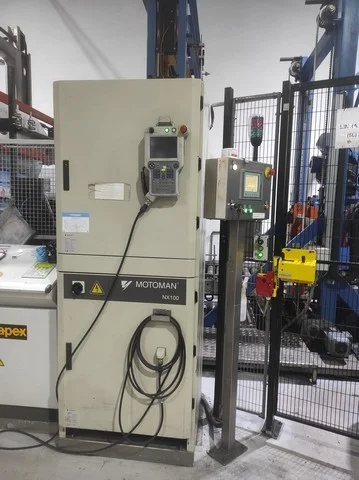

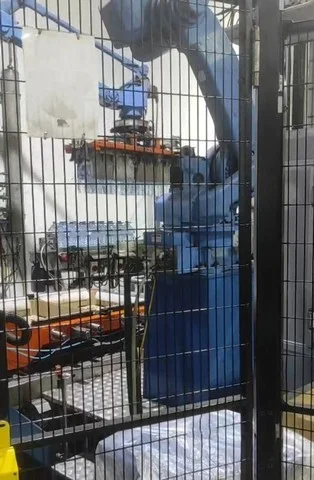

ROBOT-MOTOMAN Palletizer
Model: NX100
Year: 2006
Pallet size handled: 800 × 1200 mm
Machine manuals available: Yes
Electrical diagrams available: Yes
Line layout available: Yes
Some spare parts available
Technical data is synchronised from BottlingScout. Configuration, condition and performance must be confirmed before purchase.
