Description and technical details
filling monoblock Dipran 16.20.1 isobaric

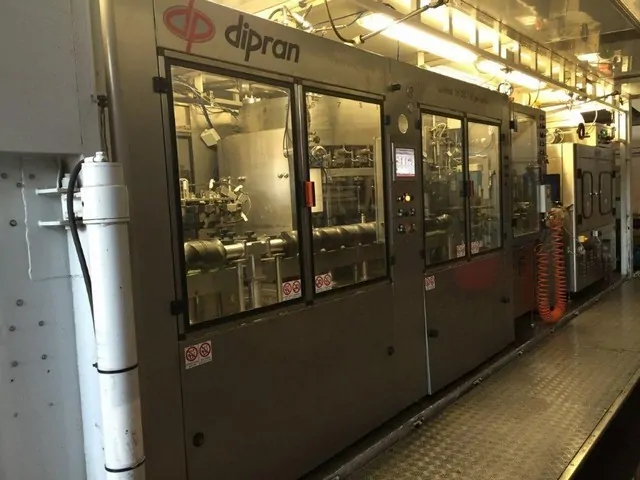

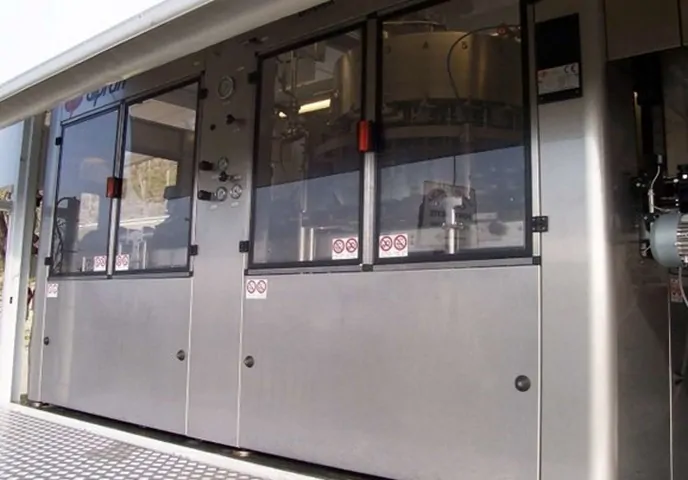

Used filling Monoblock Dipran 16.20.1 | Isobaric
Year: 2006
Speed: 2.000 Bph for 0,75L Bottles
Direction: Clockwise

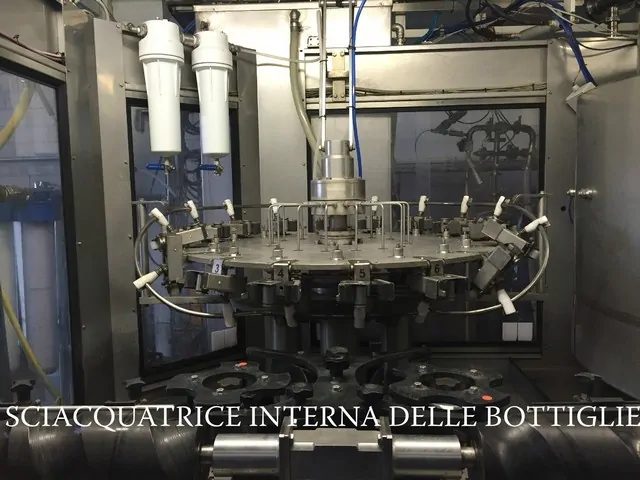

Rinser 16 Clamps
Fixed nozzle
Double treatment: rinsing and injection of inert gas

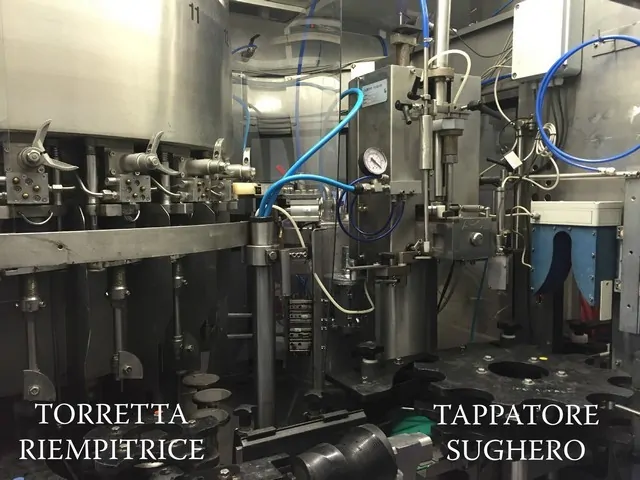

Filler 20 Filling Valves | Isobaric
Function:
Pre-evacuation
Self-leveling
De-gassing
Automated sanitization
Corker single head
Type of Corks: Natural straight cork and Mushroom cork (diameter min 22 – max 30,5mm h min 40 – max 55mm)
Function: leveling and vacuum before capping
Bottle formats: universal stars from Ø 50 mm a 113 mm, altezza min. 175 mm, max 370 mm
Other 4 bottles formats for: Ø 70, 76, 85, 100 mm
Safety protections
Technical data is synchronised from BottlingScout. Configuration, condition and performance must be confirmed before purchase.
depalletising, filling, seaming and pack-out
What to verify for this project
For breweries and beverage canning operations, evaluate this machine in relation to depalletising, filling, seaming and pack-out. Confirm configuration, condition and performance for the destination market: global can-packaging market.
