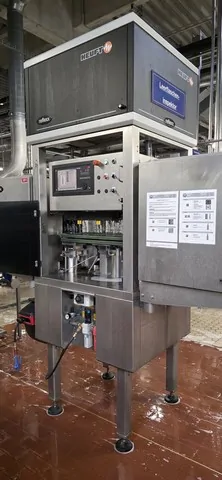

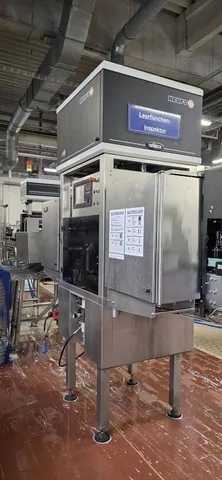

Used Bottle Inspector Heuft:
Model: Inline reflexx release 9 HBBIRTIXX
Year: 2009
Speed: 72.000 bph
Camera inspection type ccd
High-frequency and infrared sensors are used for the detection of liquid residues
Type of control: Empty glass bottles
Inspection of:
• Side walls (inlet and outlet)
• neck
• thread
• bottom
Residual liquid detection (IR/HF)
Additional exit recognition for any remaining labels in the package area
Bottle Recognition Test

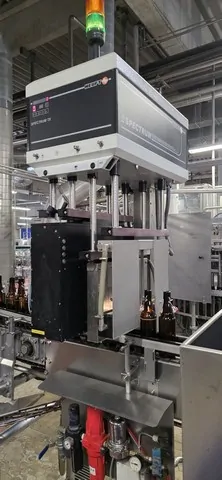

PRESELECTION SYSTEM HEUFT
Model: spectrum SX TB 72
Type: Bottle shape and height
GENERAL DATA
Machinery layout
Safety protections
